ICC CAT5e Patch Panel, UL Listed & PoE++ Rated Gigabit Applications, Wall Mount 12 Port Network Patch Panel with Rear 110 IDC Terminal Blocks and 89D Wall Mount Bracket, Black
4.7 (58 items)
Limited Time SaleUS$20.68 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215632752 | Release Date | 2026/04/12 | List Price | US$13.78 | Model Number | 215632752 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

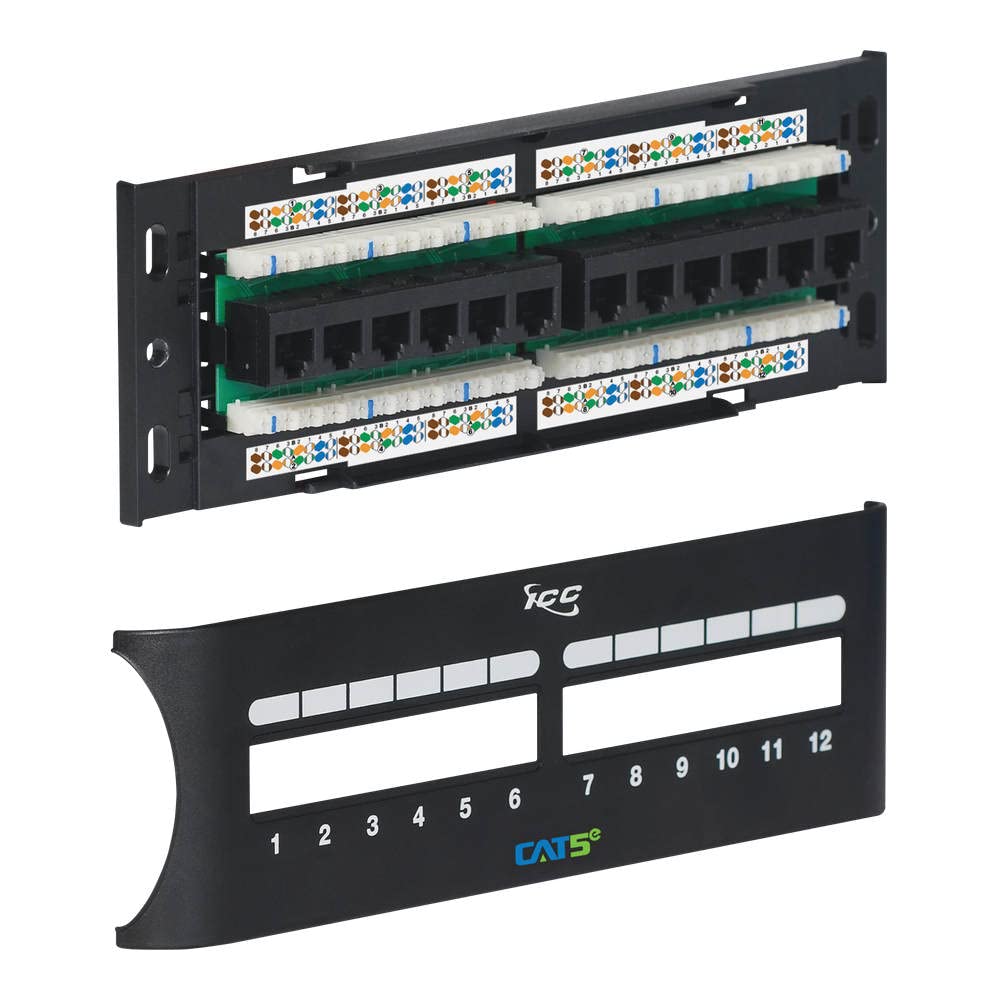

This ICC CAT5e Patch Panel is designed for wall mounting, featuring an 89D bracket for easy installation. With rear 110 IDC termination blocks, it supports quick installation while providing excellent performance for Gigabit Ethernet applications. The patch panel is PoE++ rated, with gold-plated contacts ensuring reliable connections. Durable materials, including flame-retardant plastic and phosphor bronze connectors, make this panel suitable for long-term use. It also supports re-termination and is backward compatible with lower-rated category components, meeting industry standards for optimal network performance.
- HIGH-PERFORMANCE CONNECTIVITY: Wall-mounted CAT5e component-rated fixed patch panel with an 89D wall mount bracket, delivering excellent performance for data networks requiring maximum speed and bandwidth. Backward compatible with all lower rated category components.
- FUTURE-PROOF AND RELIABLE: Designed for Gigabit Ethernet, ensuring your network is future-proof. Ideal for Gigabit Ethernet switches. Gold-plated contacts ensure a correction-free connection with 50 micro-inches of gold over 100 micro-inches of nickel. Supports Power over Ethernet (PoE) up to 90W.

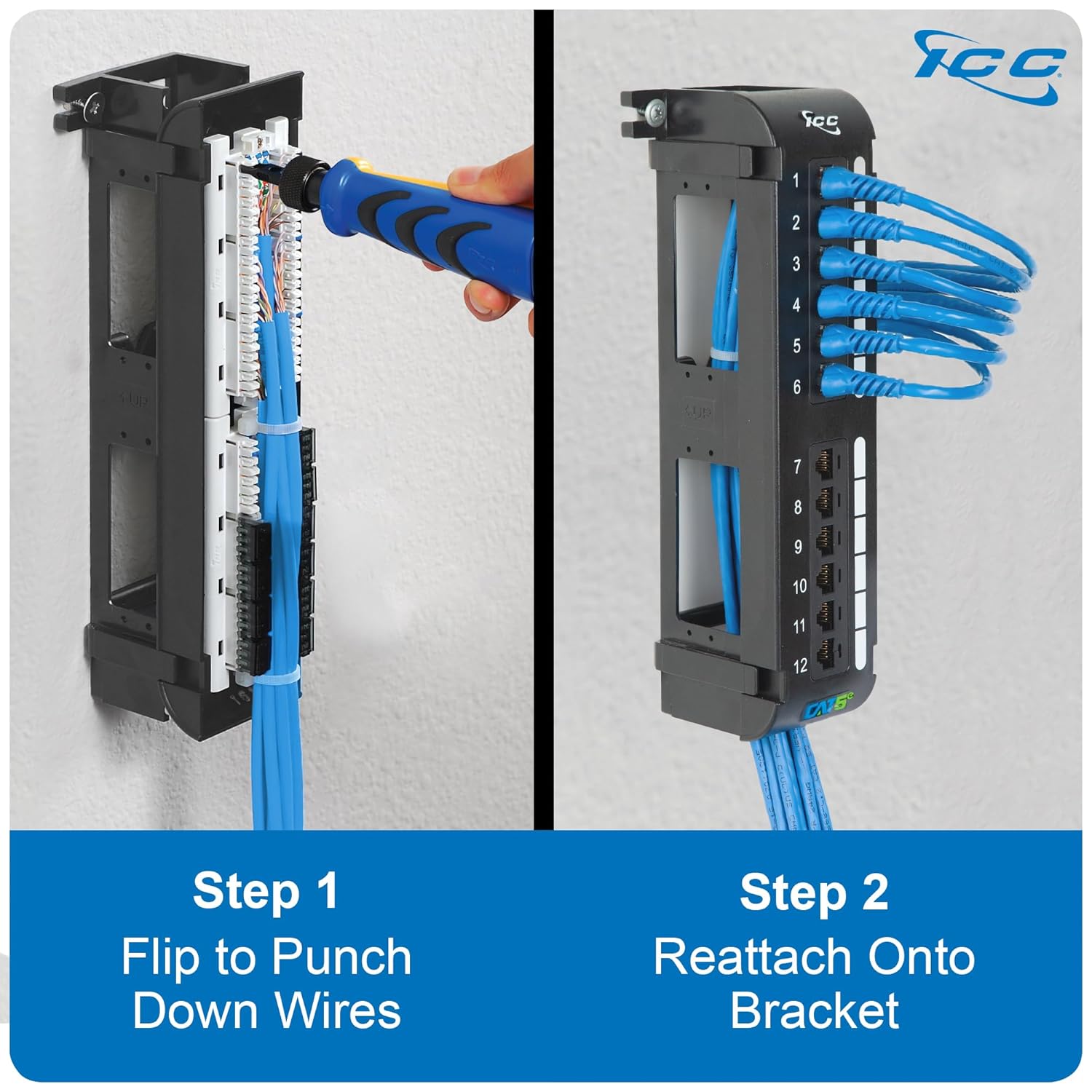

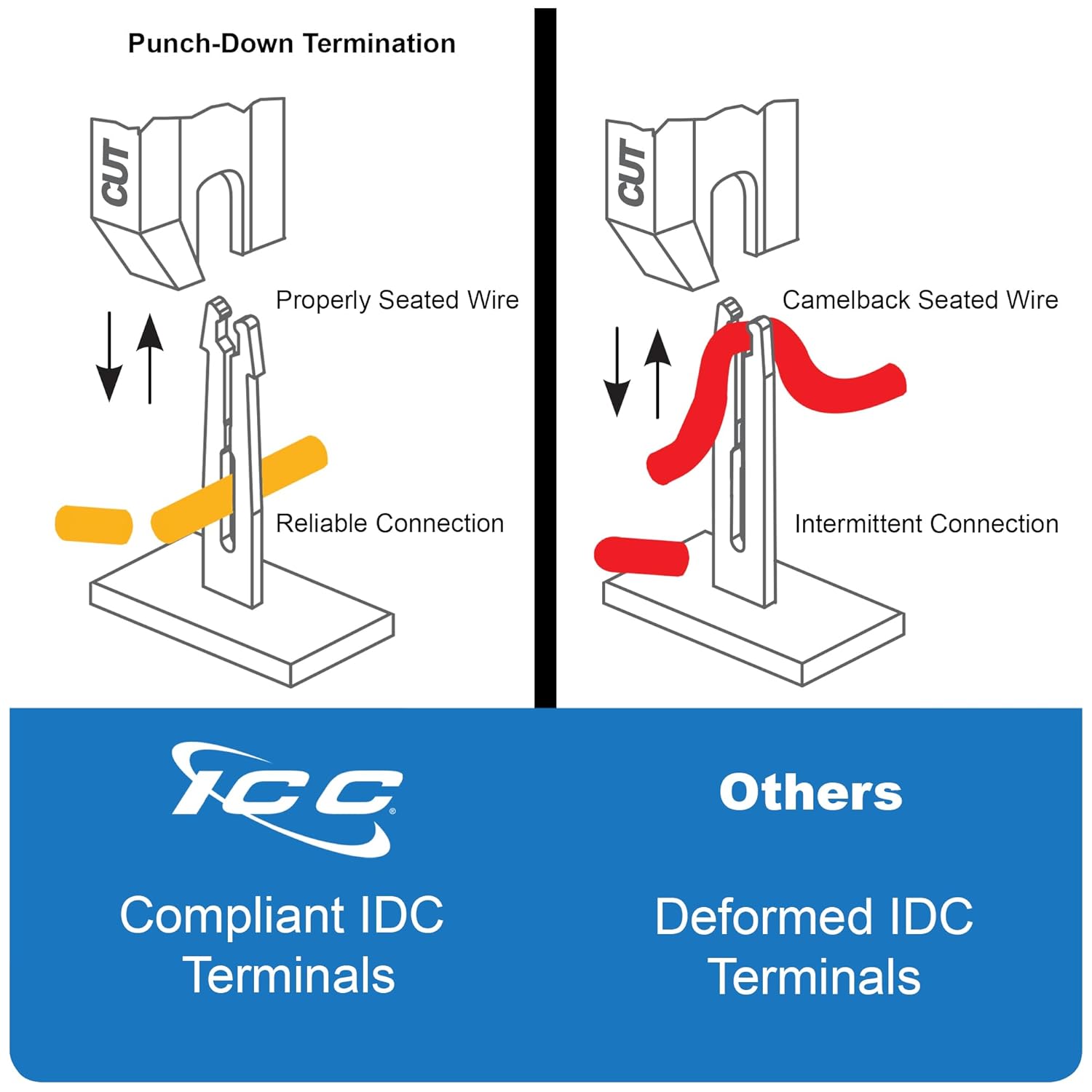

- EFFICIENT INSTALLATION AND QUICK REFERENCE: Features 110 IDC termination to reduce installation time. The 110 IDC on the rear can be re-terminated over 100 times. Numbered ports and color-coded TIA-568A and TIA-568B wiring diagrams provide quick and easy reference.
- DURABLE MATERIALS AND SAFETY COMPLIANCE: Jack housing constructed from high-impact, flame-retardant plastic (UL 94V-0 rated) and durable phosphor bronze spring wire. Phosphor bronze alloy 110 connectors with 100 micro-inches of nickel alloy. RJ45 jack can accept over 750 plug to jack insertion cycles. UL listed for fire safety compliance.
- ENHANCED CROSSTALK CANCELLATION: Engineered to exceed ANSI/TIA-568 Category 5e connecting hardware requirements with enhanced crosstalk cancellation, reducing return loss and improving overall network performance.
| UPC | 012302825717 001910686650 956263116425 754262019903 807034912695 132018009796 809390030617 999992719512 031112888347 523161271756 601000785548 088020741370 633758007047 806296599248 611101592501 872182758136 012304191971 069060009231 777782593012 |
|---|---|
| Color | 12-Port Wall Mount Rear IDC - Black |
| Model | ICMPP12V5E |
| Brand Name | ICC |
| Cable Type | Ethernet |
| Unit Count | 1.0 Count |
| Item Weight | 8 ounces |
| Manufacturer | ICC |
| Connector Type | RJ45 |
| Number of Pins | 96 |
| Maximum Voltage | 1000 Volts (DC) |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Specification Met | RoHS, TIA, UL |
| Compatible Devices | Ethernet Devices, Security Cameras |
| Data Transfer Rate | 1000 Megabits Per Second |
| Indoor Outdoor Usage | Indoor, Outdoor |
| Customer Package Type | Pack of 1 |
| Compatible Phone Models | Compatible with Ethernet-enabled phones, specific models not listed |
| Ethernet Cable Category | Cat 5e |
| Recommended Uses For Product | Networking |
| Global Trade Identification Number | 00633758007047 |
| Other Special Features of the Product | PoE++ Rated to Power Devices |
