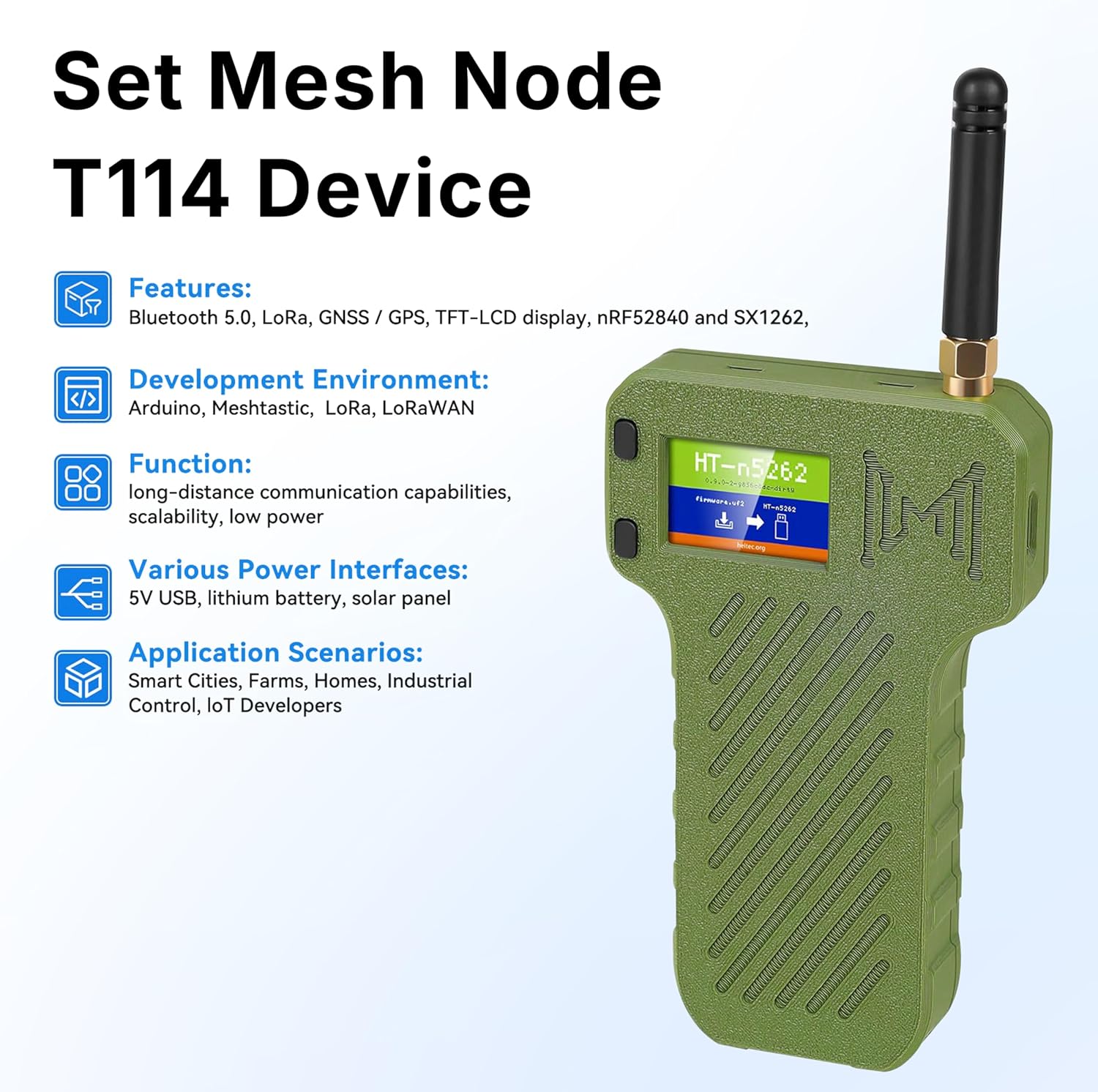

Heltec Mesh Node T114 Development Board with TFT Display, 3000mAh Battery + N36 Case Set, nRF52840 SX1262 Module, Supports LoRa, Bluetooth 5.0, WiFi, GPS and Solar Power for Meshtastic LoRaWAN IoT
4.1 (82 items)
Limited Time SaleUS$34.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216118660 | Release Date | 2026/04/19 | List Price | US$23.20 | Model Number | 216118660 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Advanced LoRa Mesh Networking Solution with GT-800 Soft Antenna: The Heltec T114 development board features nRF52840 + SX1262 chips for powerful LoRa (902-928MHz) and Bluetooth 5.0 connectivity. Equipped with the GT-800 high-gain soft antenna, this Meshtastic-compatible node offers 21dBm transmit power and -135dBm sensitivity, enhancing signal stability and range for long-distance IoT projects. The upgraded 6-layer PCB with immersion gold process ensures stable RF performance in Meshtastic networks and LoRaWAN deployments.
- Ultra-Low Power with 3000mAh Battery & Solar Ready: Engineered for efficiency, this T114 board consumes only 11µA in LoRaWAN deep sleep and 23µA in Meshtastic mode. The integrated 3000mAh lithium battery and solar panel connectors (1.25×2P) enable extended off-grid operation. The GT-800 antenna’s low-power design complements the board’s energy-saving features, making it ideal for remote sensors and environmental monitoring (-20°C to 70°C range).

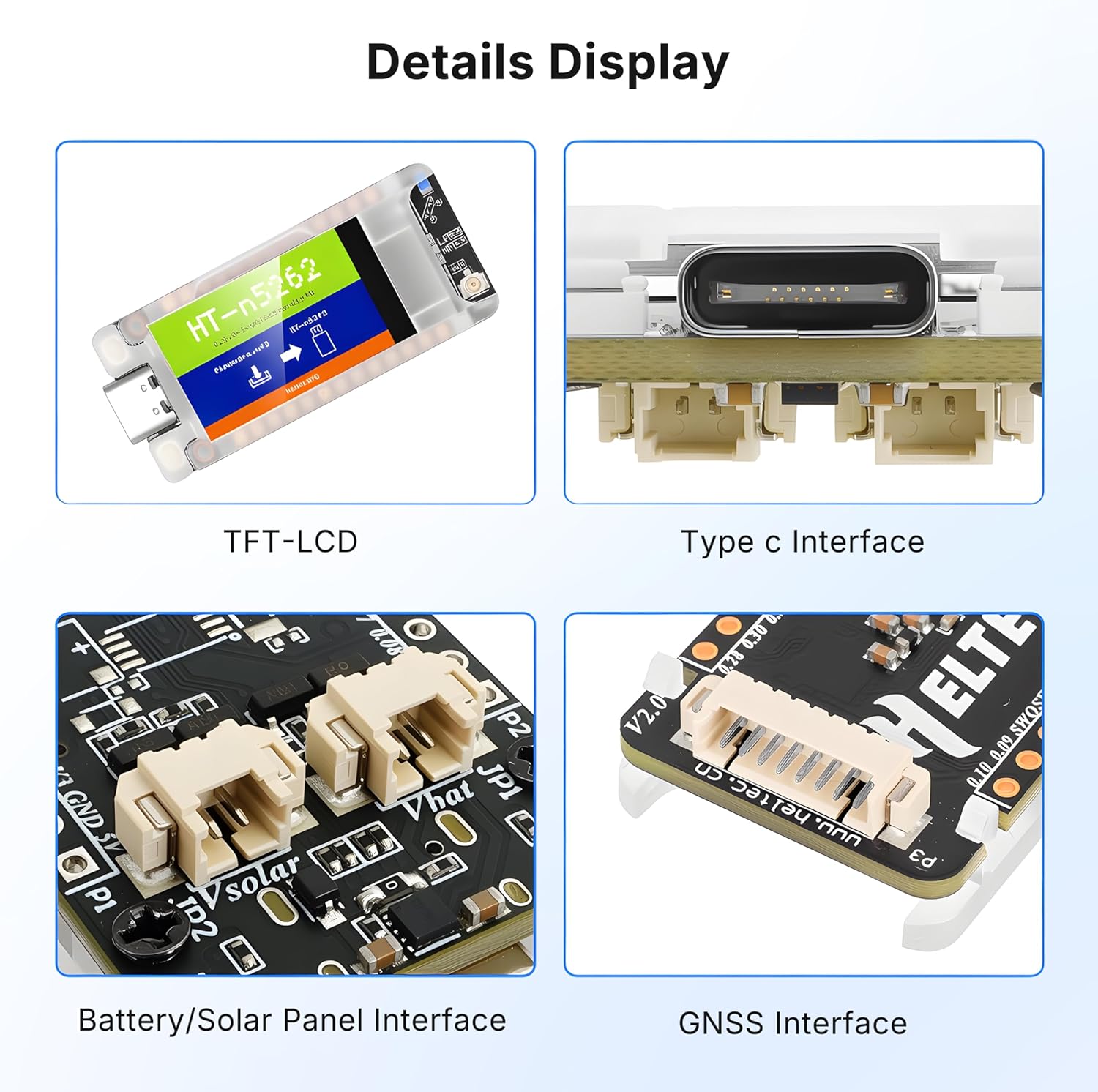

- 1.14" TFT Display & Expandable Interfaces:Features a vibrant 1.14-inch TFT-LCD (262K colors) for real-time data visualization. Offers multiple connectivity options including Type-C USB, LiPo connectors, IPEX antenna port (compatible with GT-800 or external antennas), and 2×13-pin headers (UART/SPI/PWM). Fully compatible with Arduino IDE for custom development.

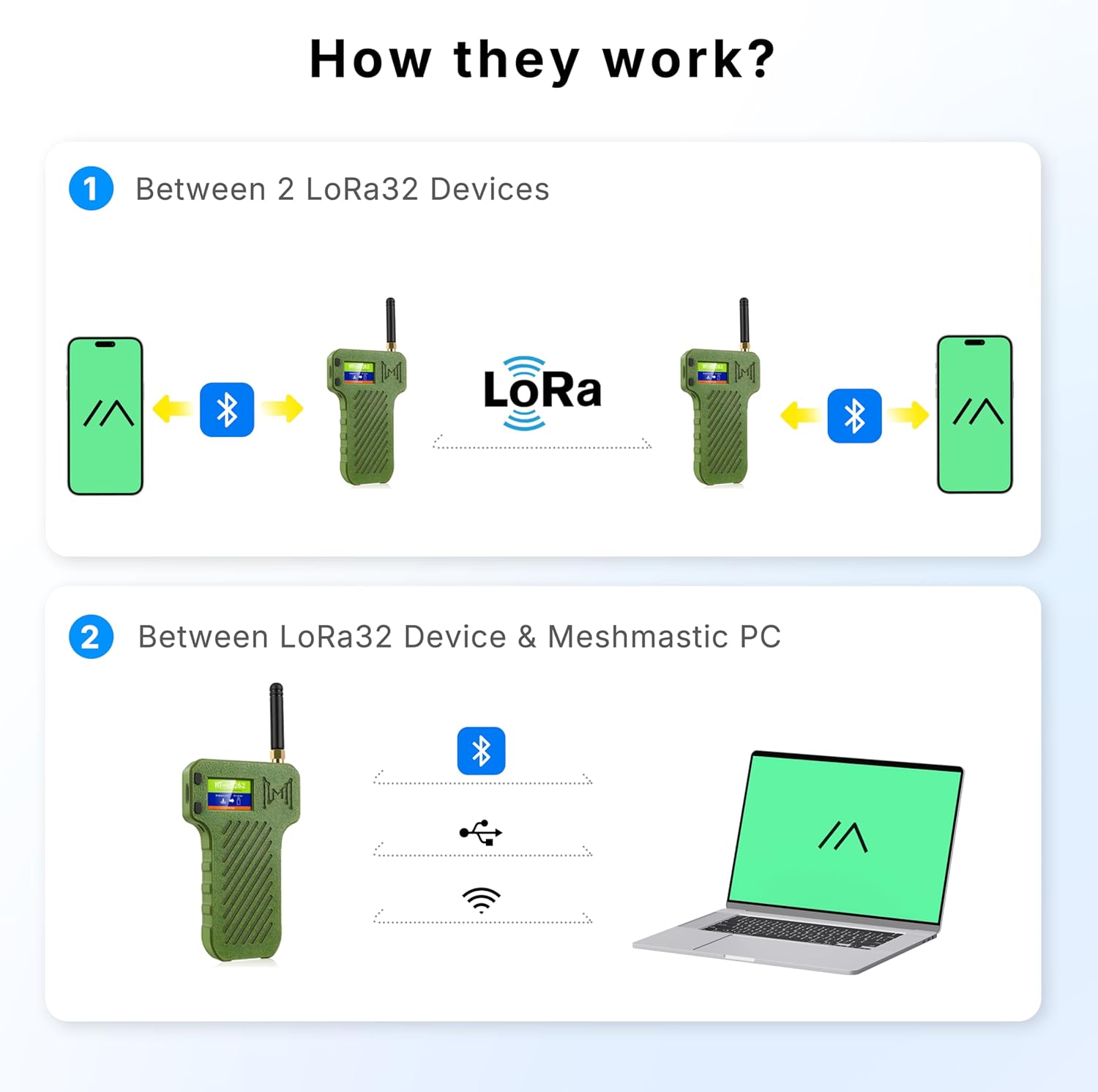

- Optimized for Meshtastic & Open-Source Projects: Pre-configured for Meshtastic firmware with stable Long_Fast channel performance. The GT-800 antenna’s flexible installation adapts to protective shells, enhancing durability and heat dissipation. Perfect for DIY mesh networks, asset tracking, and smart agriculture with open-source compatibility.
- Professional IoT Development Platform: This complete LoRa solution combines nRF52840 MCU, SX1262 LoRa chip, GT-800 soft antenna for robust RF performance, and comprehensive power options (USB/battery/solar). With Bluetooth mesh support and low-power design, it’s ideal for wireless sensors and IoT systems, from hobbyist prototypes to professional deployments.
| Brand | Heltec Automation |
|---|---|
| Model Name | T114 |
| Manufacturer | Heltec Automation |
| Model Number | T114 |
| BuiltIn Media | T114 Development Board; GT-800 Soft Antenna (167mm length, 902-928MHz optimized); Battery Connectors; Protective Case |
| Processor Brand | Nordic |
| Processor Count | 1 |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Compatible Devices | Arduino Boards, Sensors, Microcontrollers |
| RAM Memory Installed | 256 KB |
| Warranty Description | no warranty |
| Wireless Compability | Bluetooth |
| RAM Memory Technology | SRAM |
| Connectivity Technology | Bluetooth: Bluetooth LE: Bluetooth 5, Bluetooth mesh |
| Memory Storage Capacity | 1 MB |
| Item Dimensions L x W x H | 2.7"L x 0.7"W x 4.4"H |
