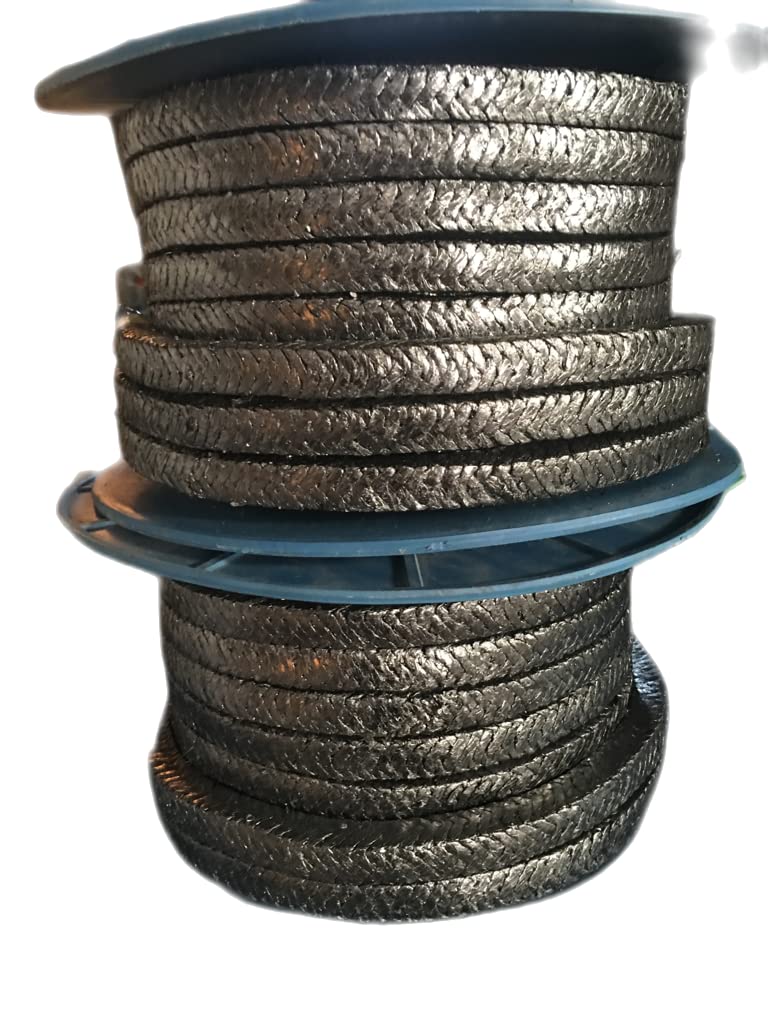

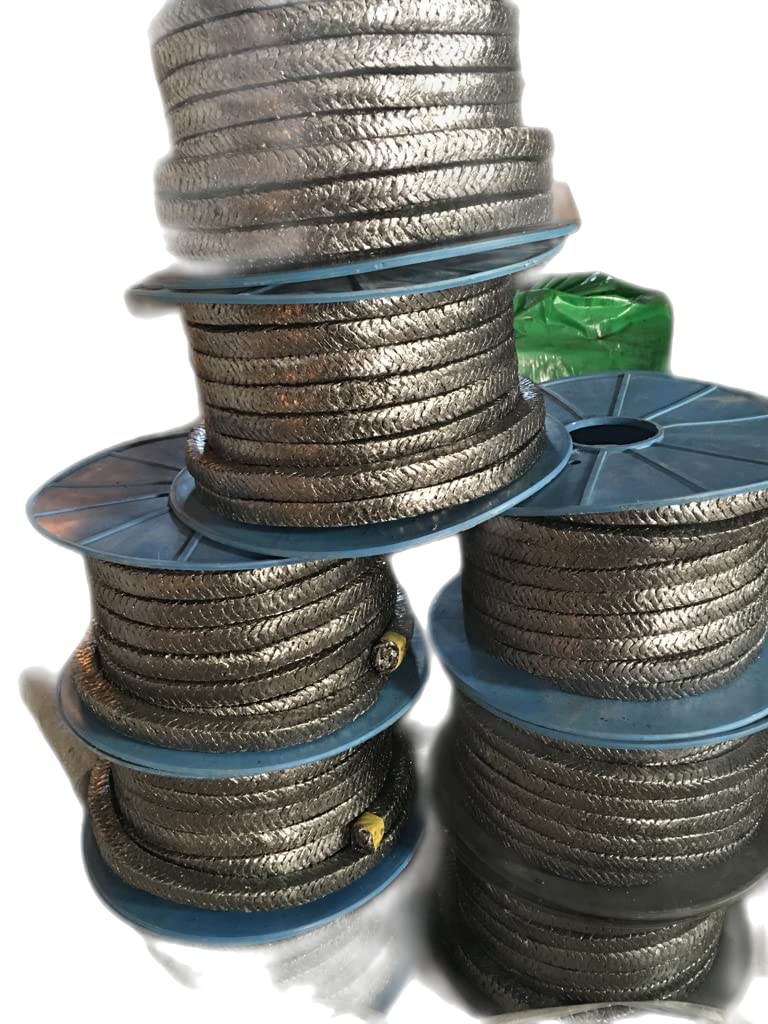

Graphite Packing Rope Graphite Packing String Expanded Flexible Graphite Gland Packing for Valve Customizable (20×20mm)

Length: 1meter
 Features:
High-pressure graphite rope is made of graphite wire weaving, mainly by a variety of reinforced fiber,
metal wire (steel wire, copper wire, nickel wire) and other enhanced graphite wire as raw materials woven. ★Can be customized into gaskets, rings

 Specification:
Name: Graphite Packing
Wire diameter: 6 mm*6 mm,8mm*8 mm,10mm*10 mm,12 mm*12 mm,14 mm*14 mm,16 mm*16 mm,18 mm*18 mm,20mm*20mm,Please contact me for other sizes
 Pressure: 40 Mpa
 Temperature: -200℃ - 800℃
 Line Speed: 20m/s
 PH Value: 2-14

 Packing list:
1* Graphite Packing

 Buyer note:
Product specifications: 3mm-120mm special specifications or various non-standard products can be made according to customer requirements.

• * ★Material: braided from pure expanded flexible graphite. It is self-lubricating, chemically inert and thermally conductive
• * ★Applicable medium: sealed hot water, high temperature, high pressure, steam, heat exchange medium, hydrogen, ammonia, organic solvent, hydrocarbon, cryogenic liquid,Pump, valve and groove uses
• * ★Partial industry listing: chemical & pharmaceutical, general industry, oil & gas, pulp & paper, power generation, mining & minerals, municipal/wastewater and steel & metals
• * ★Temperature range -328°f (-200°c) to 850°f (455°c) atmosphere to 1200°f (650°c) in steam
• * ★Metal wire (steel wire, copper wire, nickel wire) and other improved graphite wire as raw material woven carefully.
