ESP32-S3 Development Board with 1.69inch IPS Display 240×280 Pixels 262K LCD,240MHz Dual-Core Processor, Accelerometer and Gyroscope Sensor, Support W-iF-i/Blue-Too th, Suitable for Various Scenarios
4.2 (30 items)
Limited Time SaleUS$13.83 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217003920 | Release Date | 2026/04/19 | List Price | US$9.22 | Model Number | 217003920 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

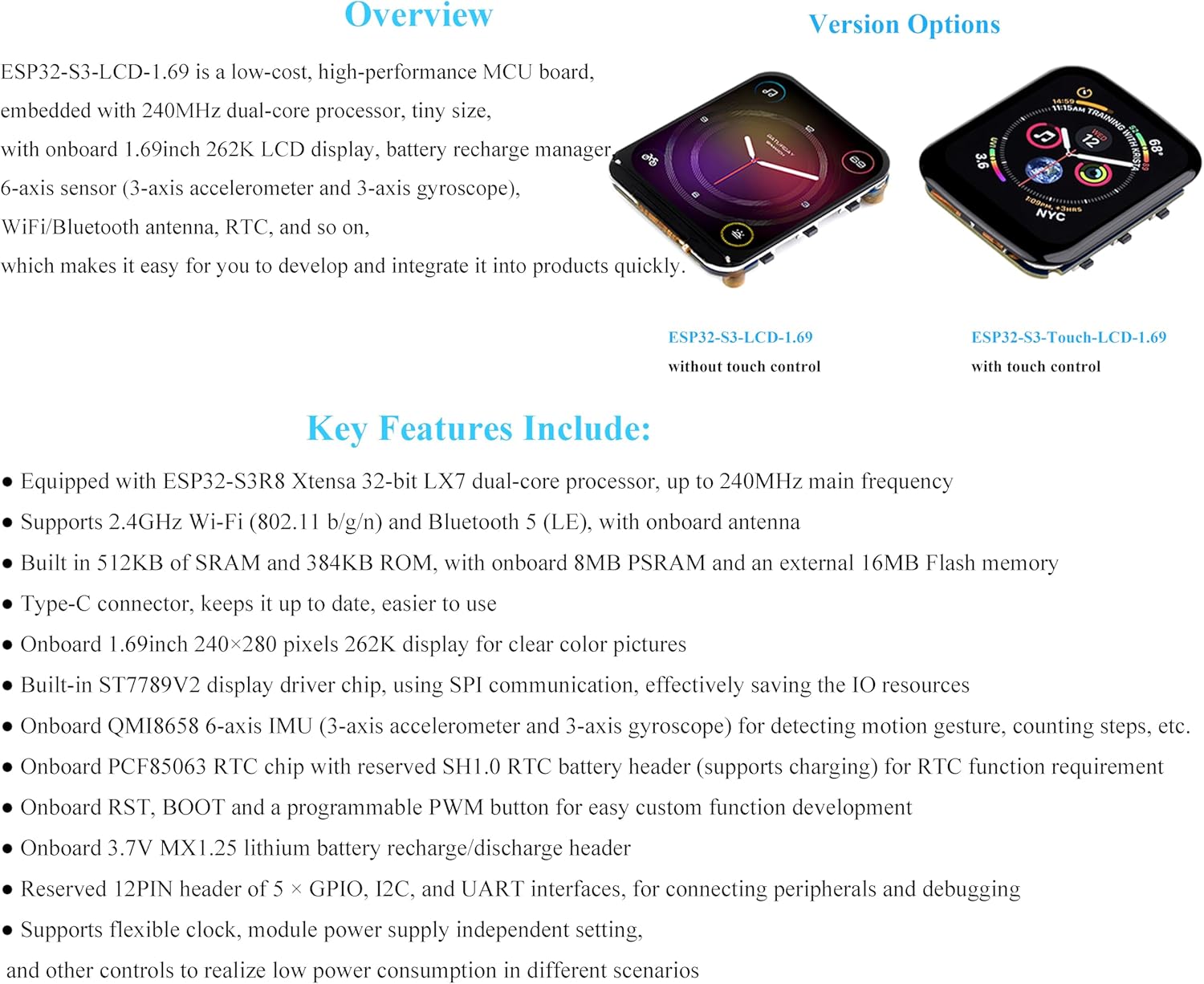

- ESP32-S3-LCD-1.69 is a high-performance MCU board designed by Waveshare. ESP32-S3 Development Board with 1.69inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280 Pixels, Supports W-iF-i/Blue-too-th, Compact size, Accelerometer And Gyroscope Sensor.
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
- Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too th 5 (LE), with onboard antenna.
- Onboard 1.69inch LCD Screen, IPS Panel, 240×280 Resolution, 65K Color, Suitable for various application scenarios. Type-C connector, keeps it up to date, easier to use.
- Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 R TC chip with reserved SH1.0 R TC battery header (supports charging) for R TC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development.
- Onboard 3.7V MX1.25 lithi um batte ry recharge/discharge header. Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/gejvdd
| Brand | Wonrabai |
|---|---|
| Model Name | ESP32-S3-LCD-1.69 |
| Manufacturer | Wonrabai |
| Model Number | ESP32-S3-LCD-1.69 |
| BuiltIn Media | ESP32-S3-LCD-1.69 x1, SH1.0 12PIN cable x1 |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 2.4E+2 MHz |
| Total Usb Ports | 1 |
| Warranty Description | Any questions, please let us know. |
| Wireless Compability | 802.11n |
| RAM Memory Technology | PSRAM |
| Memory Storage Capacity | 16 MB |
