ESP32-S3 Development Board with 1.28inch Round LCD IPS Display 240 x240 Pixel, 32-bit LX7 Dual-Core Processor, GC9A01 Display Driver Chip,Support 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-Tooth 5 (BLE)
4.2 (30 items)
Limited Time SaleUS$14.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217003836 | Release Date | 2026/04/19 | List Price | US$9.60 | Model Number | 217003836 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

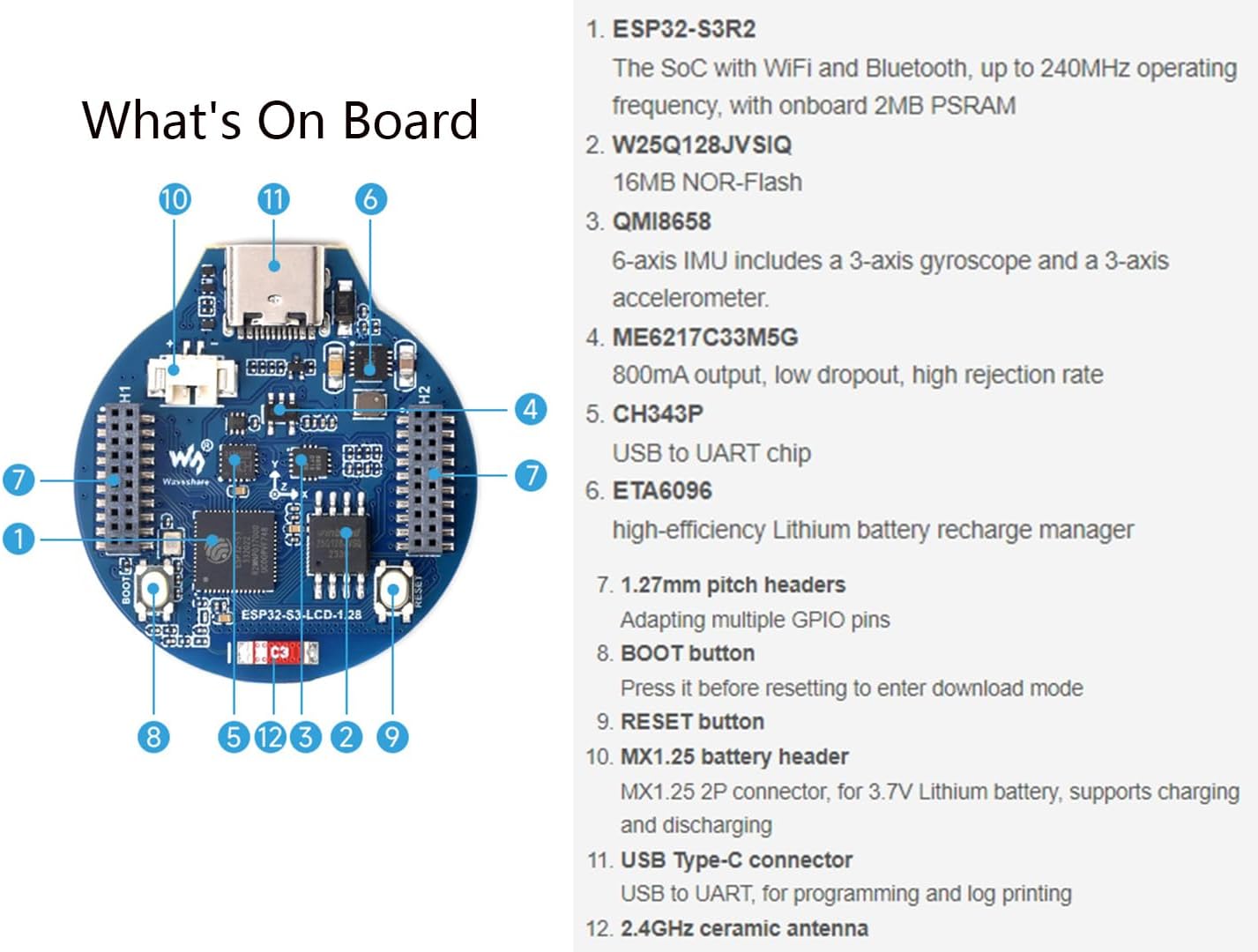

- ESP32-S3-LCD-1.28 is a high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion batte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i-F-i (802.11 b/g/n) and Blue-too-th 5 (BLE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
- Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
- Onboard 3.7V lith-ium batte-ry recharge/discharge header and GPIO headers
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Provide Online Development Resources /User Manual ://bit.ly/3vAodp4
| Brand | UeeKKoo |
|---|---|
| Platform | Windows |
| Model Name | ESP32-S3-LCD-1.28 |
| Item Weight | 0.02 Pounds |
| Chipset Type | ESP32-S3R2 |
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3-LCD-1.28 |
| BuiltIn Media | ESP32-S3-LCD-1.28 x1 |
| Number of Ports | 30 |
| Total Usb Ports | 1 |
| Memory Clock Speed | 240 MHz |
| Warranty Description | Technical Support is provided |
| Compatible Processors | ESP32-S3 series |
| Memory Slots Available | 2 |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 16 MB |
| System Bus Standard Supported | SATA 2 |
