ESP32-C6 1.69inch Display Dev Board, 240×280 262K LCD, 32-bit RISC-V Processor, Support Wi-Fi 6, IEEE 802.15.4 (Zigbee 3.0 and Thread), and Bluetooth 5, Support AI Voice Interaction

Overview ESP32-C6 1.69inch LCD Development Board, 240×280 Pixels, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor, AI Speech, ESP32 With Display Features Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance Built-in 320KB ROM, 512KB HP S-R-A-M, 16KB LP S-R-A-M and 16MB Flash memory Type-C connector for easier use Onboard 1.69inch LCD display for clear color picture display, 240 × 280 resolution, 262K color Built-in ST7789V2 driver chip, using SPI communication, effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip for RTC function requirement Onboard RST, BOOT and a programmable side button for easy custom function development Onboard 3.7V MX1.25 Lithium battery recharge/discharge header Onboard ES8311 audio codec chip, microphone, and speaker for AI interaction Reserved GPIO, I2C, USB, and UART pads for external device connection and debugging, enabling flexible peripheral configuration Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios Package Content ESP32-C6-LCD-1.69 × 1 6Ω 1W speaker × 1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz. Built-in 320KB ROM, 512KB HP S-R-A-M, 16KB LP S-R-A-M and 16MB Flash memory
• ESP32-C6 1.69inch LCD Development Board integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, more powerful wireless connectivity

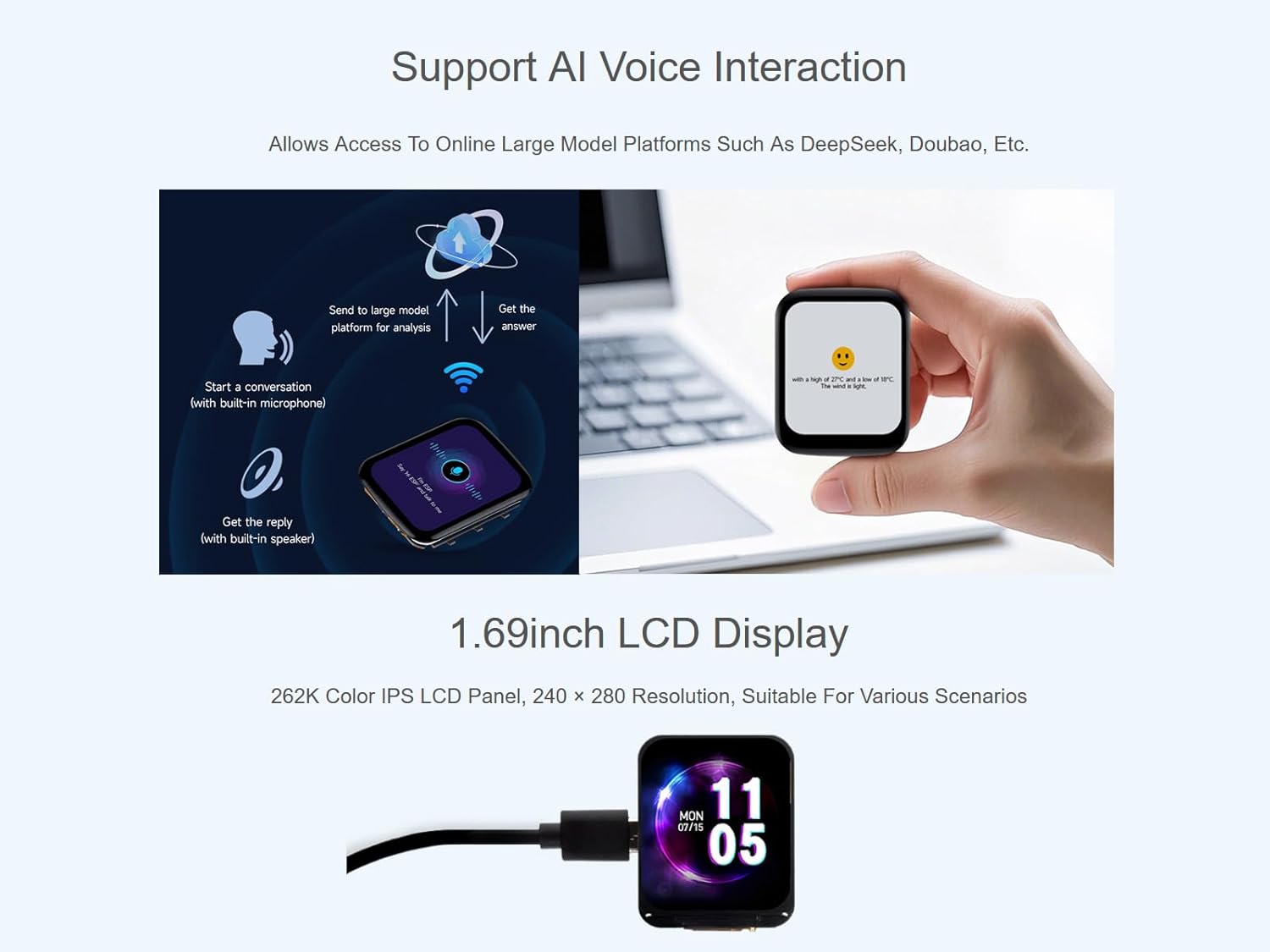

• ESP32-C6 1.69inch Display Dev Board onboard ES8311 audio codec chip, microphone, and speaker for AI interaction, allows access to online large model platforms

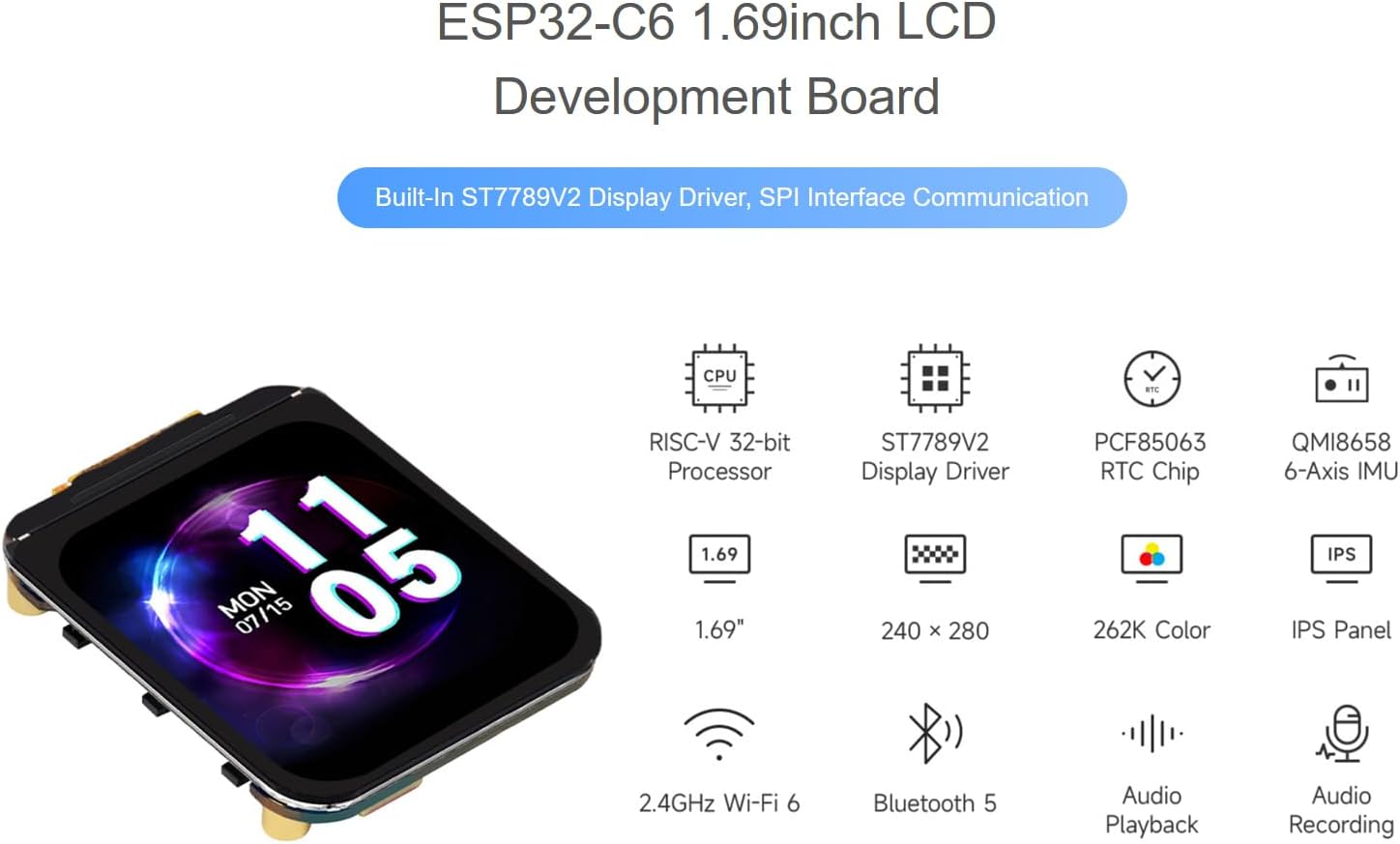

• ESP32-C6 MCU Board onboard 1.69inch LCD display for clear color picture display, 240 × 280 resolution, 262K color IPS panel, suitable for various scenarios. Built-in ST7789V2 display driver, SPI interface communication
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip for RTC function requirement
