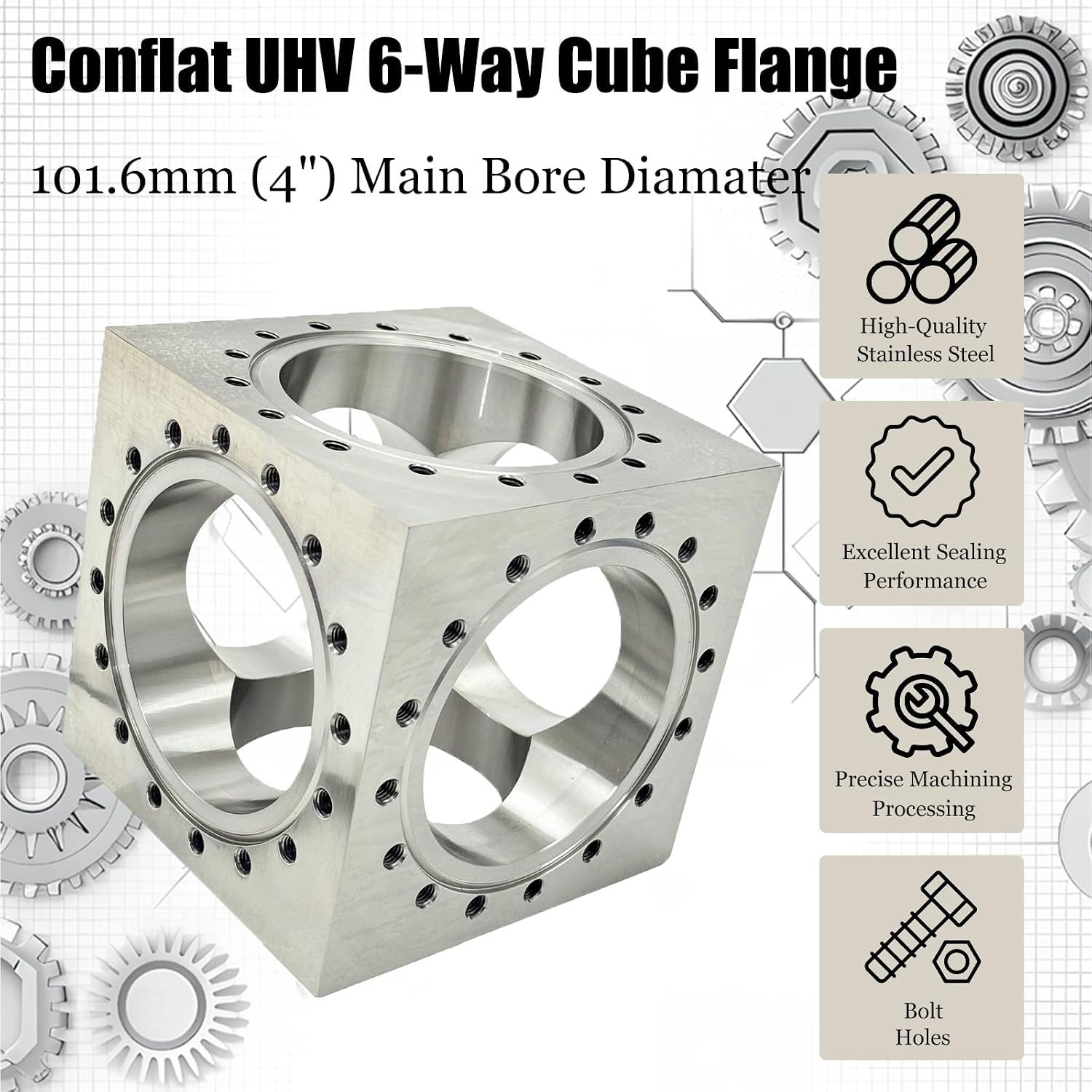

Conflat UHV 6-Way Cube Flange Ultra High Vacuum Chamber 304SS CF100 Used for High and Ultrahigh Vacuum System, 101.6mm (4") Main Bore Diamater

Product Parameters Material: 304 Stainless steel Number of bolt holes M8 on each side: 16 Diameter of main bore: 101.6mm (4") The size of the bolt hole: M8 Product size: 15×15×15cm (5.9*5.9*5.9") Net weight: 9.3kg (20.5LB) One package includes Conflat UHV 6-Way Cube Flange 304SS CF100 *1

• Main Product Parameters: Material: 304 Stainless steel, Number of bolt holes M8 on each side: 16, Diameter of main bore: 101.6mm (4"), Product size: 15×15×15cm (5.9*5.9*5.9"), Net weight: 9.3kg (20.5LB)
• Strong Stainless Steel Material: The CF flange is made of high-quality 304 stainless steel materials through precise casting, which ensures high structural strength and hardness, and has long service life
• Excellent Sealing Performance: The flange is processed through precision machining and integral forming, greatly achieving high vacuum and good sealing performance, adapting well to complex vacuum systems and effectively avoiding leaks
• Precise Machining Processing: The interior and exterior of the CF flange are processed through the precision polishing technology, the edges are smooth and free of burrs and gaps, enhancing good product quality
• Bolt Holes: There are 16 standard bolt holes in each side, the bolt holes can be perfectly matched with standard bolts M8, thereby well guaranteeing connecting stability and vacuum sealing performance
