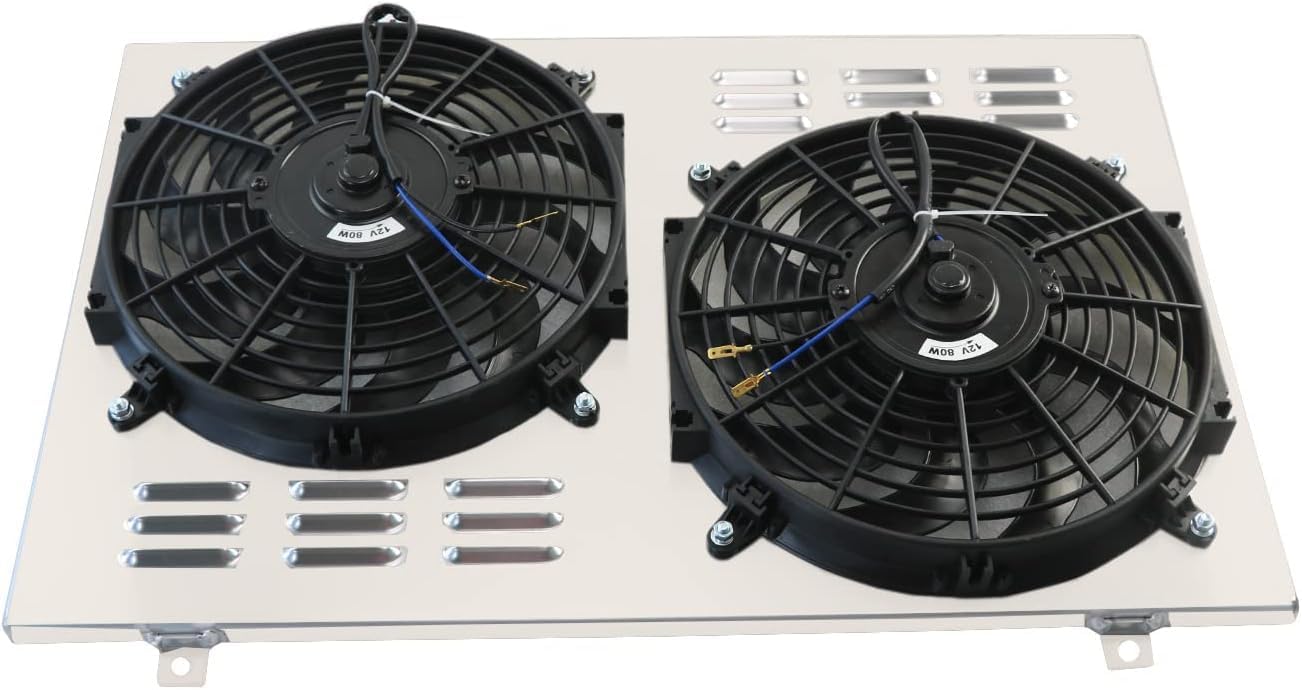

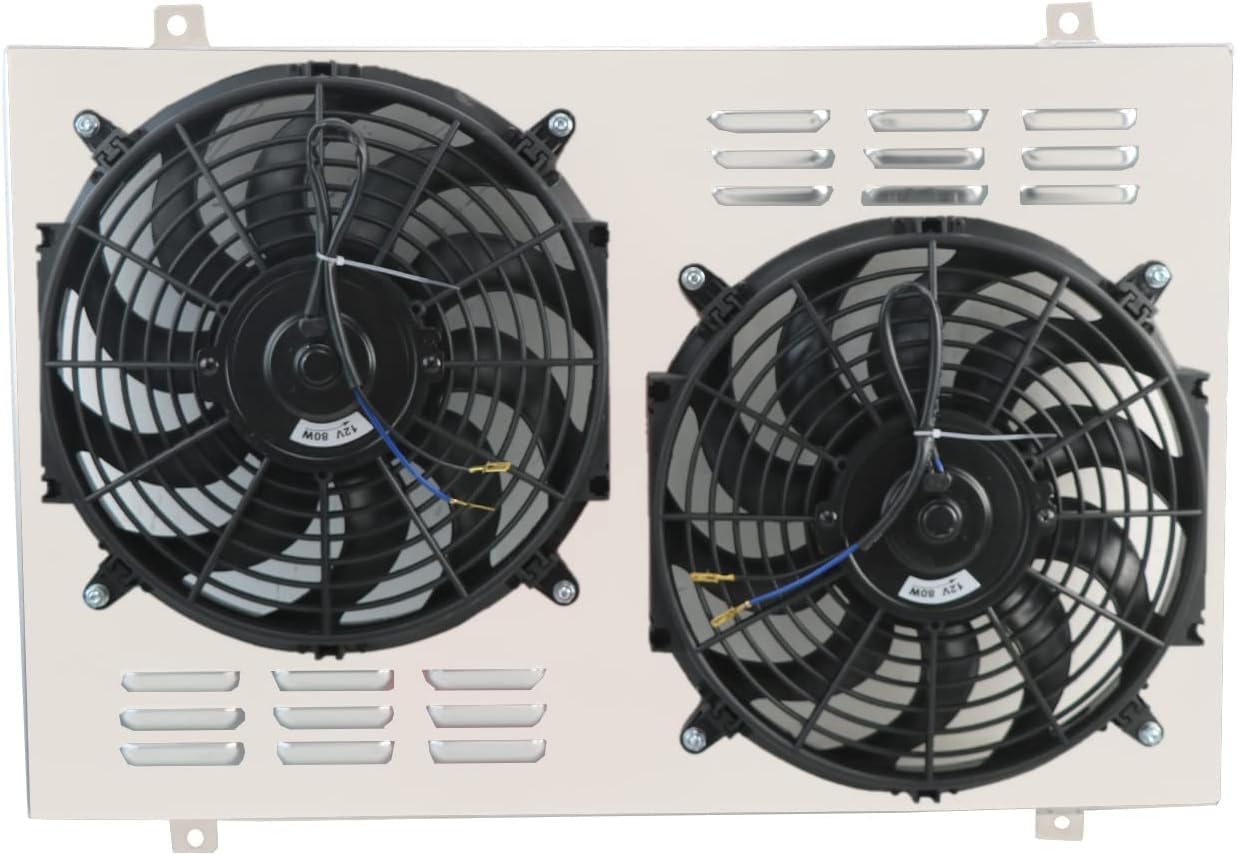

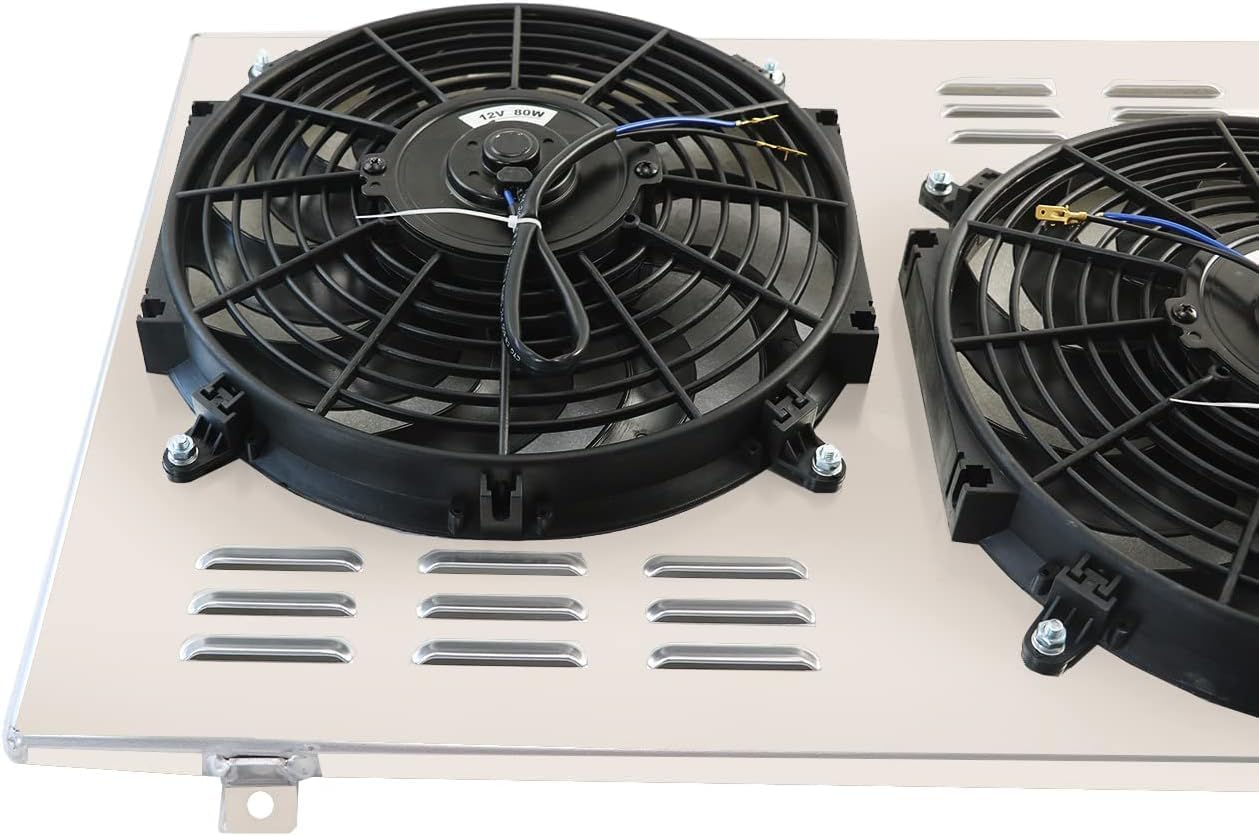

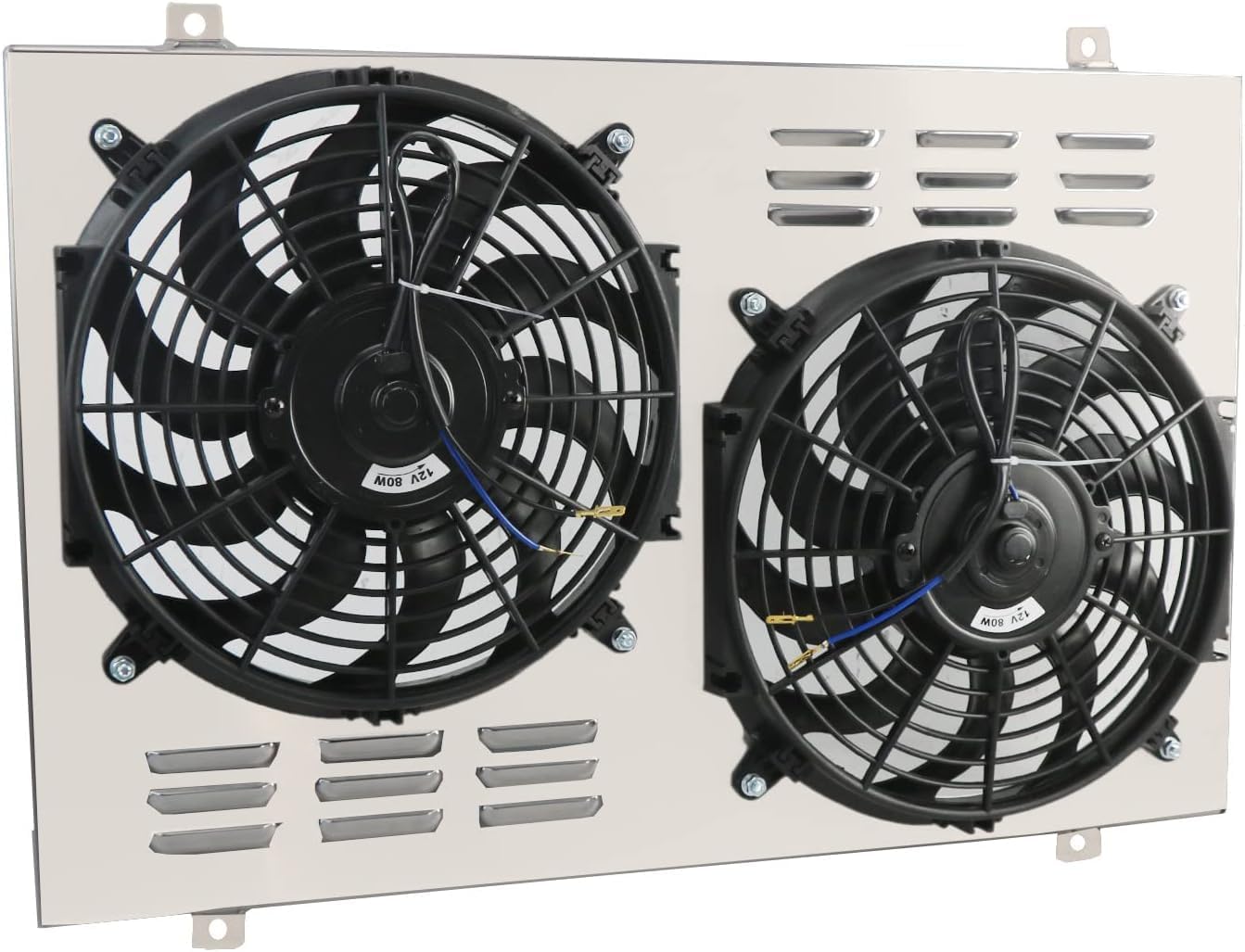

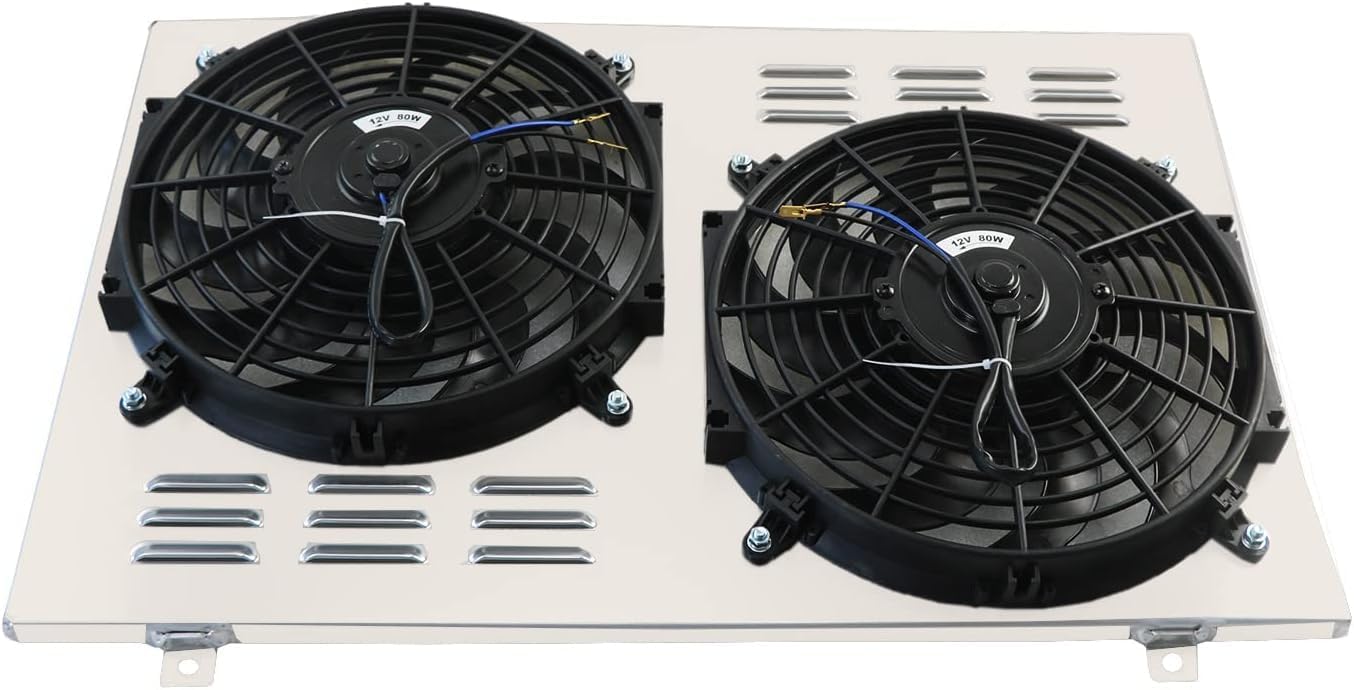

Aluminum Radiator Shroud Fan with Thermostat Relay for 1982-1992 89 Chevy Camaro Pontiac Firebird 5.0L 5.7L V8

This Shroud Fan Compatible with: 1982-1984 Chevy CAMARO 2.5L - 5.0L (26" WIDE CORE ONLY) 1985-1986 Chevy CAMARO 5.0L (26" WIDE CORE ONLY) 1987-1992 Chevy CAMARO 5.0L - 5.7L 1982-1984 PONTIAC FIREBIRD/TRANSAM 2.5L - 5.0L 1985-1986 PONTIAC FIREBIRD/TRANSAMN 5.0L 1987-1988 PONTIAC FIREBIRD/TRANSAM 5.0L - 5.7L 1989-1992 PONTIAC FIREBIRD/TRANSAM 3.1L - 5.0L - 5.7L Fan Details: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050 Thickness (in): 2.500 Number of Blades: 10 S-Type blades Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator Shroud and Fans: The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine With excellent operating temperature management, allowable levels of engine temperature are stabilized Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine

• Perfect Fit for Classic Muscle Cars - Exact match for 1982-1992 Chevrolet Camaro (2.5L-5.7L) and 1982-1992 Pontiac Firebird/Trans Am (2.5L-5.7L). Fits radiators with core size 26 1/4"W×16 4/9"H & overall size 31 1/2"W×19 2/3"H (26" wide core required for 1982-1986 models)
• Complete Cooling Upgrade Kit - All-in-one package includes 2x12" high-performance fans, AA5052 aluminum shroud, thermostat relay kit, and mounting hardware
• Powerful 1730CFM Airflow - Dual 12V fans (1730CFM each, 2250RPM, 10 S-type blades) deliver strong push/pull airflow. Shuttered AA5052 aluminum shroud maximizes heat extraction, stabilizing engine temps during racing, cruising, or hot weather
• Intelligent Thermostat Control - Included relay kit activates fans at 180°F and shuts off at 165°F, preventing overheating and reducing battery drain. Universal wiring (RED+BATTERY, WHITE+IGNITION, BLACK+THERMO, BLUE+FANS) ensures easy integration
• Durable Design & Easy Installation - Lightweight yet rigid AA5052 aluminum shroud resists corrosion and enhances engine bay aesthetics. Fans feature plastic blades (durable & lightweight) with mounting tabs for zip-tie setup—no drilling or modifications needed
